  • GQ40C BAR CUTTING MACHINE
  • GQ40C BAR CUTTING MACHINE

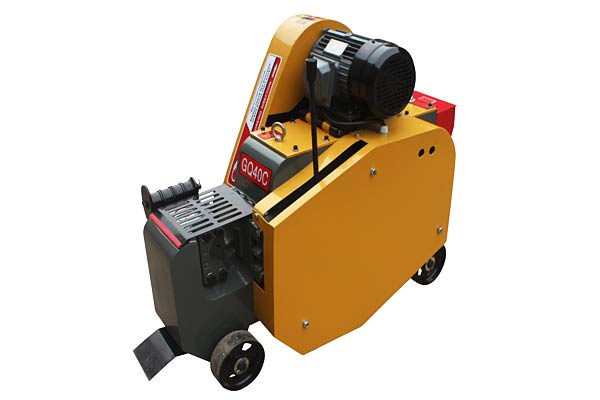

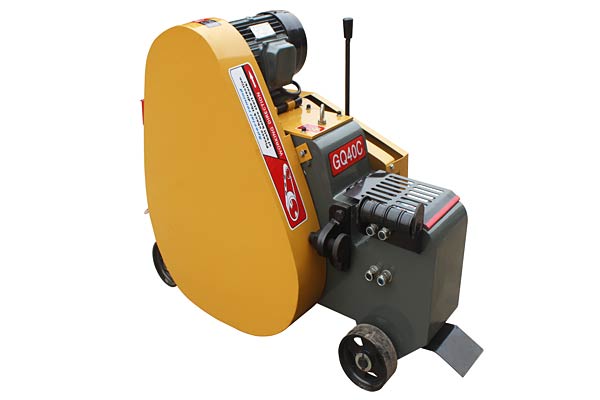

GQ40C BAR CUTTING MACHINE

Cut round steel bar diameter:• (φ6-φ40)mm

Motor power:• 3kw

Packing size :• 1260x500x850mm

Cutting frequency:• 32times/min

Motor revolving speed:• 2870r/min

We're here to help:Easy ways to get the answers you need.

Peter Hu

0086-15032613767

0086-319-7584146

0086-15032613767

rjbmachinery@yeah.net

Zhengzhuang Village, Xingwan Town, Xingtai City, Hebei Province, China

  • Parameters
  • Description
  • Principle
  • Applications
  • Delivery site
Bar cutter Model

GQ40A

GQ40B

GQ40C

GQ50

GQ50A

Guarantee

2 years

2 years

2 years

2 years

2 years

Diameter of bar

40 mm

40 mm

42 mm

50 mm

50 mm

Yield strength

HRB 335Mpa (N/ mm2)

HRB 335Mpa (N/ mm2)

HRB 335Mpa (N/ mm2)

HRB 400Mpa (N/ mm2)

HRB 400Mpa (N/ mm2)

Power

YX3-23 kw

YX3-23 kw

YX3-23 kw

YX3-24KW

YX3-24KW

Material of winding

Copper+Silicon steel sheet (800)

Copper+Silicon steel sheet (800)

Copper+Silicon steel sheet (800)

Copper+Silicon steel sheet (800)

Copper+Silicon steel sheet (800)

Size of blade(mm)

83*83*26

83*83*26

83*83*26

90*75*26/90*90*26

90*75*26/90*90*26

Material of blade

Super alloy tool steel(60Si2Mn)

Super alloy tool steel(60Si2Mn)

Super alloy tool steel(60Si2Mn)

Super alloy tool steel(9CrSi)

Super alloy tool steel(9CrSi)

Material of body

Ductile iron QT500-7

Ductile iron QT500-7

Ductile iron QT500-7

Ductile iron QT500-7

Ductile iron  QT500-7

Size of body(cm)

96*20*52

96*20*55

103*20*58

103*22.5*60

103*22.5*60

Weight of body (kg)

186

195

205

237

255

Material of shaft

high quality carbon structural steel C45

high quality carbon structural steel C45

high quality carbon structural steel C45

high quality carbon structural steel C45

high quality carbon structural steel C45

Material of Connecting rod

high quality carbon structural steel(45#)high-energy-rate forging

high quality carbon structural steel(45#)high-energy-rate forging

high quality carbon structural steel(45#)high-energy-rate forging

high quality carbon structural steel(45#)high-energy-rate forging

high quality carbon structural steel(45#) high-energy-rate forging

Material of crankshaft

Super alloy tool steel40r) high-energy-rate forging

Super alloy tool steel40r) high-energy-rate forging

Super alloy tool steel40r) high-energy-rate forging

Super alloy tool steel40r) high-energy-rate forging

Super alloy tool steel40r) high-energy-rate forging

Material of gear

Ductile iron QT500-7

Ductile iron QT500-7

Ductile iron QT500-7

high quality carbon structural steel(45#)

high quality carbon structural steel(45#)
high-energy-rate forging

V-belt

B type: h=11mm,

b=17mm

B type: h=11mm,

b=17mm

B type: h=11mm,

b=17mm

B type: h=11mm,

b=17mm

B type: h=11mm,

b=17mm

Size of wheel(mm)

160*60*6

160*60*6

160*60*6

165*60*6

165*60*6

Material of wheel

Ductile iron QT400-15

Ductile iron QT400-15

Ductile iron QT400-15

Ductile iron QT400-15

Ductile iron QT400-15

GQ series rebar cutting machine can be applied to cut the common carbon steel rod, hot rolled steel, deformed bar, flat steel, square steel and angle steel in machine processing and construction projects.

Characteristics:
1.Adopt high quality copper wire motor, enhanced machine rack, compact structure, solid and reliable.
2.Good lubricating property, it could continuous work two months after adding 5-8kg gear oil.
3.Less functional loss compared wtih same type cutting machine, load power can be largely reduced.
